Microstrip Balanced Amplifier

0 Credits

d7165b24-1ea8-4db7-9b59-566461283877.rar

Login for download
Category:

Description

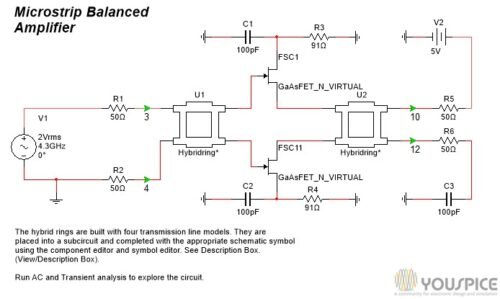

This SPICE simulation shows the operation and characteristics of a microstrip balanced amplifier structure, with two 90º couplers and two identical amplifiers. One excellent use of quadrature couplers (90º hybrid couplers) is to impedance match pairs of devices.
