Signal Generator with 8 bit DAC

0 Credits

ad0cab8c-f67f-48e2-94e3-43d05a1da697.rar

Login for download

Description

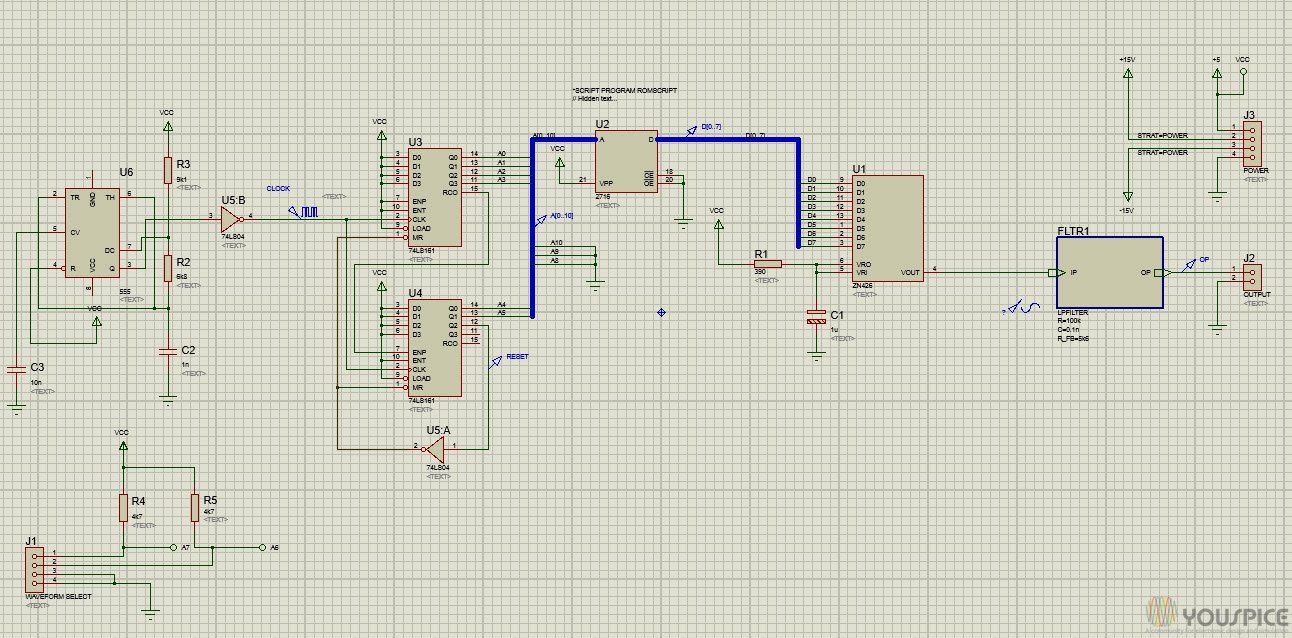

SPICE simulation of sine signal generator with a timer 555, two synchronous 4 bit counters 74LS161,a 74LS04 inverter, a 2716 programmable EPROM and a 8 bit digital analogic converter ZN426. The output is filtered by a low pass filter.
