Micro Boost Converter LTC3525-3 for Single-Dual cell Alkaline

0 Credits

d87b22ea-964e-48f9-a705-c2383b0b410c.zip

Login for download

Description

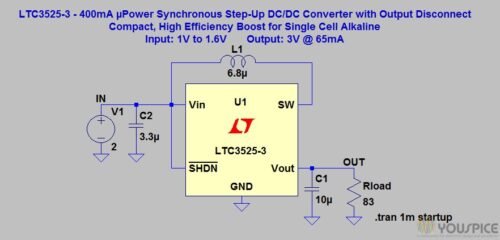

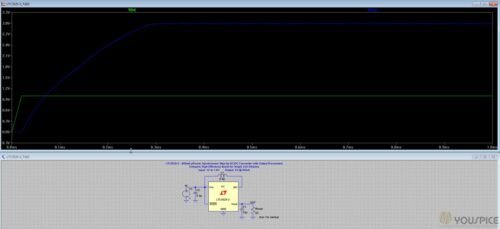

SPICE simulation of power supply for single – dual cell alkaline. This high efficiency step up converter is a good alternative to charge pumps in single or dual cell alkaline or Li-ion applications. The efficiency reaches 95%. the voltage input varies from 1V to 1.6V, the output is 3V, 65mA. Typical applications are portable instruments, Mp3 players, digital cameras.

  • : Free
  • : Intermediate
  • :
  • : LTspice
  • : IV
  • : No
