MC33163 Inverting Converter

0 Credits

66d94c85-9ad6-436e-a66b-58b45b4e82af.zip

Login for download

Description

DC-DC converter in voltage inverting configuration. The MC34163 is designed for a a minimum number of external components.the voltage ripple is about (ton * Iout)/Co.

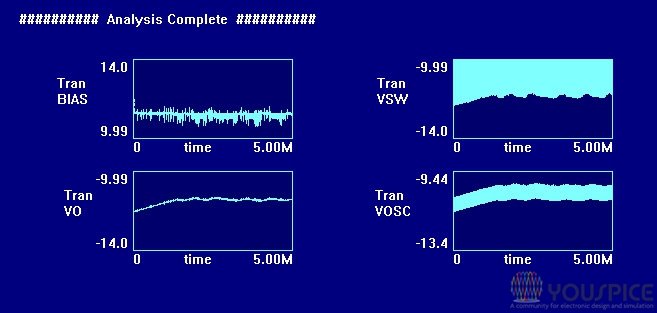

  • inverting configuration transient overview output voltage
