10 Watt Linsley amplifier with single power supply

0 Credits

8a9fdd98-5361-4d82-815f-15a006b3151b1.zip

Login for download

Description

This is the single power supply version of the 1965 class A amplifier by Linsley Hood. Replacing the transistor 2N3902 with the transistor 2n1613 the AC analysis shows a bandwidth much greater.

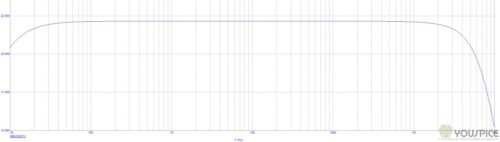

  • Db gain vs frequency replacing the 2n3902 with 2n1613 the AC shows a larger BW harmonic distortion in Db and THD vs frequency
