PSpice Textual Description

10. Study and simulate the CLAMPER circuit.
PSPICE CODING:

*CLAMPER CIRCUIT

VIN 1 0 10 SIN(0 10 1KHZ)

C1 1 2 1UF IC=-15V

R1 2 0 1MEG

VDC 3 0 DC 5

D1 3 2 DIODE

.MODEL DIODE D

.TRAN 20US 3MS

.PROBE

.END

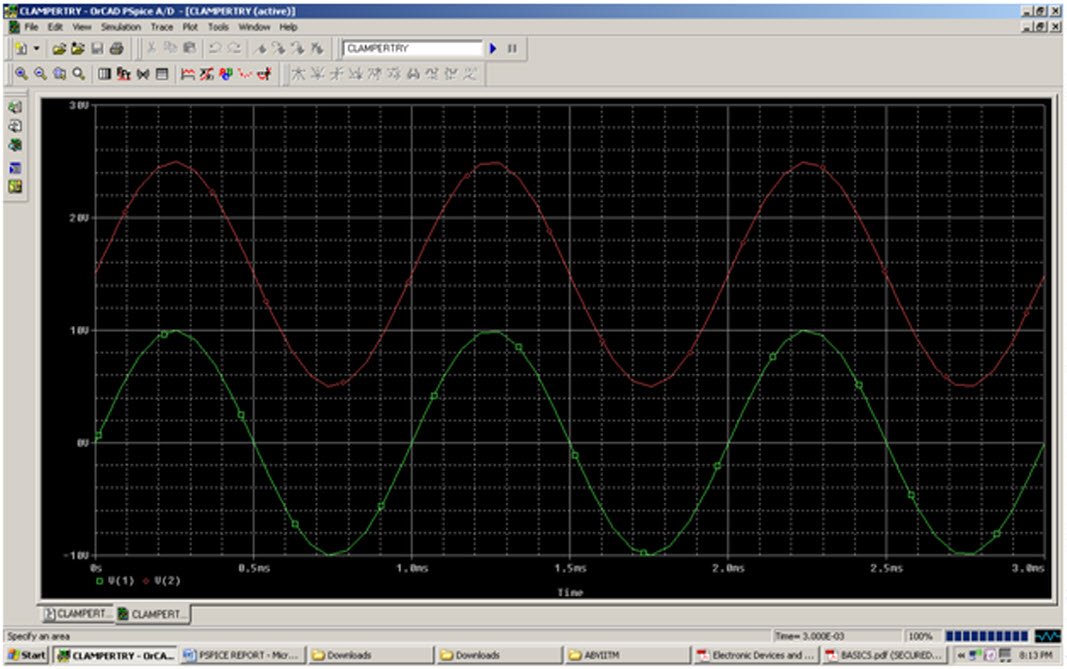

GRAPHICAL ANALYZER:

clamper

CONCLUSION: Above graph shown that the given clamper circuit raise(shift) the input voltage 4v(raise dc level) above.

11. Do the transient analysis for RLC series circuit.

PSPICE CODING:

*transient analysis of rlc circuit

VIN 1 0 SIN(0V 10V 5KHZ)

R1 1 2 2OHM

L1 2 3 50UH

C1 3 0 10UF

.TRAN 1US 500US

.PROBE

.END

GRAPHICAL  ANALYZER:

rlc

CONCLUSION: From above graph we concluded that voltage in all three nodes w.r.t follows the input voltage but magnitude of input voltage varying in all nodes.
