Power Factor correction of 25 Horse Power Electrical Motor

0 Credits

74583703-8fb5-495f-b147-0948700f5db8.zip

Login for download

Description

A 3 Phase supplies a 20 kW motor power, 240V RMS.Before power factor correction the cos phi is 0.56. The currents on lines are up to 90 ampere RMS.After the power factor correction with compensation capacitors, cos phi is close to 1 and line currents drop down to 60 ampere.

  • Free
  • Intermediate
  • 11-20
  • LTspice
  • IV
  • No

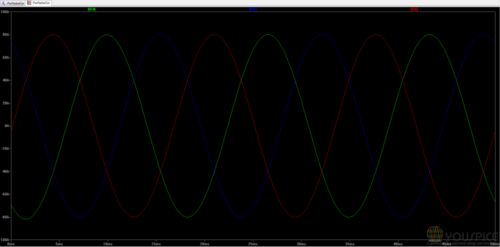

  • rline currents before power factor correction correction capacitors line currents after power factor correction
